70″, 85″, or 100″ Screens? The B2B Sizing, Span & Weight Capacity Guide for Extra-Long Commercial Media Consoles

Introduction: The Era of the Ultra-Large Display

For the past decade, a 55-inch television was considered the standard for American living rooms and hotel suites. Consequently, a 60-inch TV stand was sufficient to support the market. Today, the landscape has radically shifted. As panel manufacturing costs plummet, 75-inch, 85-inch, and even 100-inch displays have become the new baseline for luxury hospitality projects, corporate boardrooms, and high-end residential developments.

This massive leap in screen size has created a severe structural deficit in the furniture industry. A 100-pound, 85-inch television placed on a standard residential-grade cabinet will cause the wood to bow (sag) in the middle. Within months, drawer glides will jam, cabinet doors will scrape against the frame, and the unit will become a liability.

For B2B procurement managers sourcing wholesale TV stands, finding an extra long media console manufacturer capable of engineering units that exceed 80 inches in width without compromising structural integrity is a critical challenge. As a specialized heavy duty commercial TV stand supplier, MMK Furniture Makers (operated by MMK TRADE INC) provides this definitive guide to sizing mathematics, anti-sag engineering, and load capacities for the ultra-large display era.

1. The Golden Ratio: Screen Size to Console Width Matrix

The most common mistake made by interior designers and retail buyers is confusing the “diagonal” TV measurement with its physical width. A 75-inch TV is not 75 inches wide; it is measured diagonally. Its actual physical width is approximately 66 inches.

If a 66-inch wide TV is placed on a 65-inch wide console, the edges of the screen will overhang the furniture. Visually, this creates a top-heavy, unbalanced aesthetic. Practically, it exposes the delicate edges of the screen to passing foot traffic, dramatically increasing the risk of the TV being knocked over.

The Overhang Rule

To maintain architectural balance and physical safety, a media console must provide an “overhang buffer.” The furniture should extend a minimum of 4 to 6 inches beyond the edge of the TV on both sides (an 8 to 12-inch total buffer).

2. Ergonomic Height: The Low-Profile Mandate for Big Screens

Width is only half the equation when sourcing wholesale TV stands for 85 inch TV models. The height of the cabinet must decrease proportionately as the screen size increases. If an 85-inch TV is placed on a standard 30-inch high sideboard or buffet, the viewer will be forced to crane their neck uncomfortably upward.

• The Eye-Level Rule: The center of the television screen should sit exactly at the seated viewer’s eye level, which is typically 42 to 44 inches from the floor in a standard living room setup with a sofa.
• Height Adjustments: Because an 85-inch TV is roughly 42 inches tall, the top of the media console must be incredibly low. MMK engineers ultra-low profile consoles with heights ranging from 18 inches to 22 inches specifically designed to accommodate massive displays perfectly.

3. Structural Engineering: Eliminating Center-Span Sag

The physics of long furniture are unforgiving. Gravity, combined with the concentrated weight of a heavy TV base in the exact center of the cabinet, causes a phenomenon known as “Deflection” or sagging. Once a cabinet bows even a quarter of an inch, the internal geometry fails: doors scrape, drawers won’t close, and the aesthetic is ruined.

As a heavy duty commercial TV stand supplier, MMK TRADE INC employs architectural engineering to guarantee dead-flat top panels, regardless of the span:

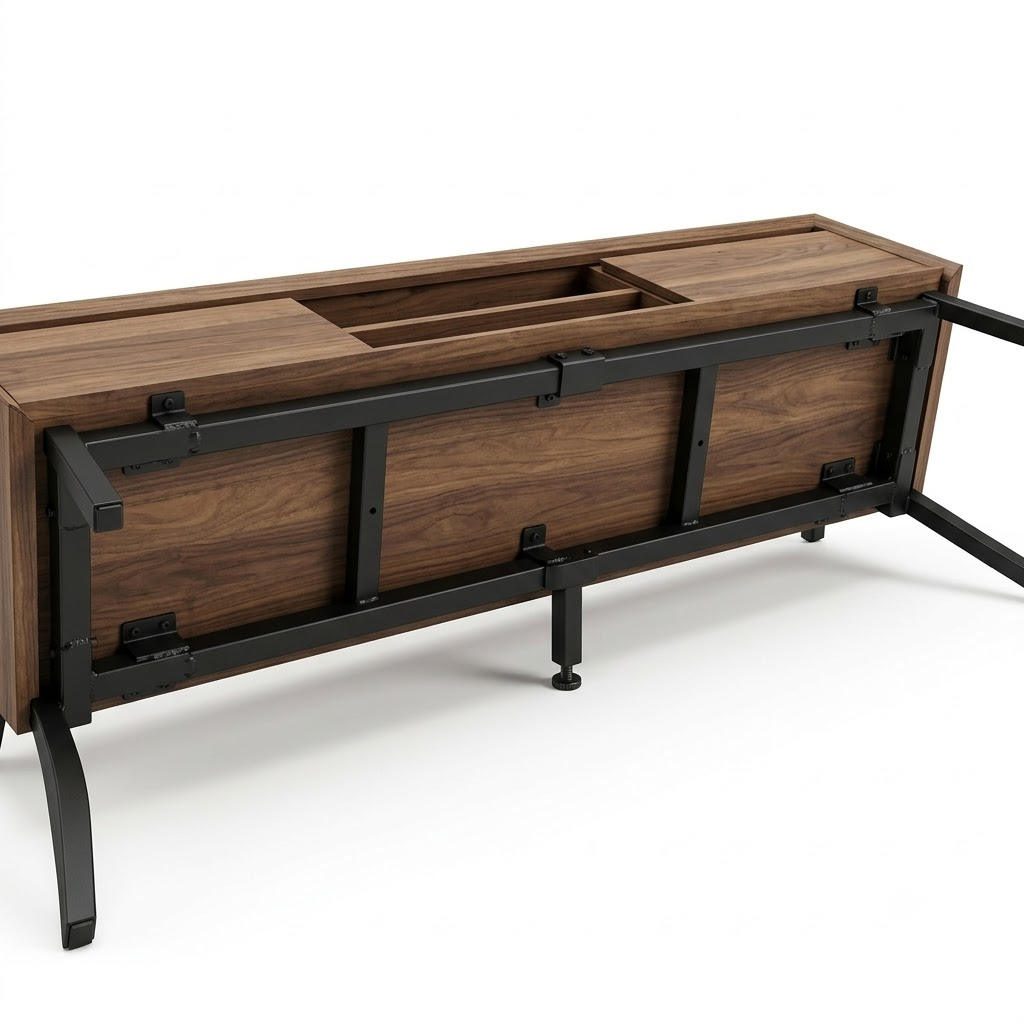

• Concealed Steel C-Channels: For solid wood panels exceeding 75 inches in width, we router deep channels into the underside of the wood and bolt in heavy-gauge steel C-channels. This provides iron-clad rigidity while allowing the wood to naturally expand and contract with humidity changes.
• The Hidden 5th and 6th Legs: A standard 4-leg design cannot support a 90-inch span safely. We integrate adjustable, heavy-duty metal support legs perfectly positioned in the geometric center of the cabinet base. These are painted matte black and set back deeply from the front edge so they remain completely invisible to the user.
• Thickened Substrates: We reject the 15mm (0.6 inch) particleboard used by budget retailers. Our commercial consoles utilize 25mm (1 inch) to 30mm (1.2 inch) high-density, TSCA Title VI compliant MDF or solid hardwood for all load-bearing top panels, instantly doubling the weight capacity.

4. The Logistics Challenge of Extra-Long Consoles

Engineering an extra long media console is only half the battle; shipping it across the Pacific Ocean and through the US domestic FedEx/UPS network without snapping the long panels in half is the true test of a B2B supplier.

Extra-long cartons are highly susceptible to “folding” or bending during forklift transit. To protect your investment, MMK utilizes ISTA 3A Mail-Order Drop-Tested Packaging tailored specifically for oversized items:

• Honeycomb Corrugated Spacers: We insert rigid honeycomb cardboard structures inside the long cartons to prevent the box from crushing under the weight of other stacked pallets.
• Split-Top RTA Engineering: For extreme widths (exceeding 100 inches), we can engineer the top panel as a precision split-joint. This allows a 100-inch console to ship in a 55-inch box, drastically reducing LTL (Less-Than-Truckload) freight surcharges for “oversized length” while maintaining a seamless visual joint upon assembly.

5. B2B Sizing & Capacity FAQ
